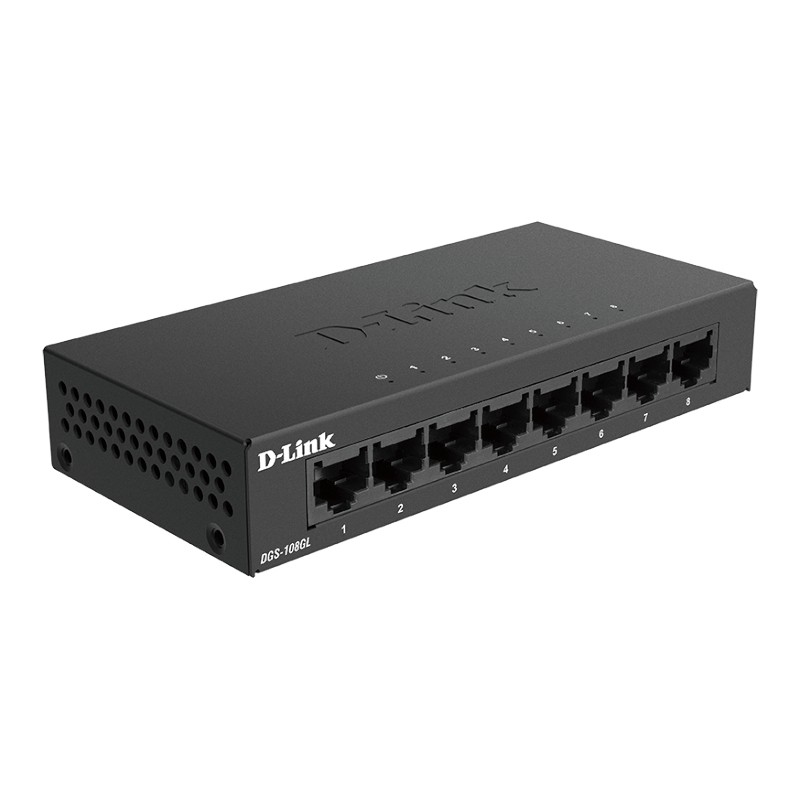

Početna     DGS-108/E D-Link switch 8x10/100/1000
DGS-108/E D-Link switch 8x10/100/1000

DGS-108/E D-Link switch 8x10/100/1000


D-Link 8-portni gigabitni switch, metalno kućište

D-Link 8-portni gigabitni desktop switch


KM 70.00
PDV uračunat u cijenu

Šifra artikla: 344C021007



Key Features

   ƒƒBuilt-in D-Link Green Technology
   ƒƒInexpensive Gigabit solution for Home/SOHO
   ƒƒEight 10/100/1000 Mbps Gigabit ports
   ƒƒ16 Gbps switching fabric
   ƒƒAuto MDI/MDIX crossover for all ports
   ƒƒSecure store-and-forward switching scheme
   ƒƒFull/half-duplex for Ethernet/Fast Ethernet speeds
   ƒƒIEEE 802.3x Flow Control
   ƒƒSupports 9,000 Byte Jumbo Frames
   ƒƒSupports IEEE 802.1p QoS (4 Queues, Strict Mode)
   ƒƒSupports Cable Diagnostics Function
   ƒƒRoHS compliant
   ƒƒPlug-and-play installation

Standards

   ƒƒIEEE 802.3 10BASE-T Ethernet (twistedpair copper)
   ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
   ƒƒIEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
   ƒƒANSI/IEEE 802.3 NWay auto-negotiation
   ƒƒIEEE 802.3x Flow Control
   ƒƒIEEE 802.1p QoS
   ƒƒIEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

   ƒƒCSMA/CD

Data Transfer Rates

   ƒƒEthernet:
       ƒƒ10 Mbps (half duplex)
       ƒƒ20 Mbps (full duplex)
   ƒƒFast Ethernet:
       ƒƒ100 Mbps (half duplex)
       ƒƒ200 Mbps (full duplex)
   ƒƒGigabit Ethernet:
       ƒƒ2000 Mbps (full duplex)

Topology

   ƒƒStar

Network Cables

   ƒƒ10BASE-T:
       ƒƒUTP CAT 3, 4, 5/5e (100 m max.)
       ƒƒEIA/TIA-586 100-ohm STP (100 m max.)
   ƒƒ100BASE-TX, 1000BASE-T:
       ƒƒUTP CAT 5/5e (100 m max.)
       ƒƒEIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

   ƒƒAuto MDI/MDIX adjustment for all ports

LED Indicators

   ƒƒPer port: Link/Activity/Speed
   ƒƒPer device: Power

Transmission Method

   ƒƒStore-and-forward

MAC Address Table

   8K

ƒƒMAC Address Learning

   ƒƒAutomatic update

Packet Filtering/Forwarding Rates

   ƒƒEthernet: 14,880 pps per port
   ƒƒFast Ethernet: 148,800 pps per port
   ƒƒGigabit Ethernet: 1,488,000 pps per port

RAM Buffer

   ƒƒ128 KB per device

DC Input

   ƒƒExternal 5 V/1 A Level “V” Power Adapter

Power Consumption

   ƒƒPower On (Standby):
       DC input: 0.55 watts
       AC input: 1.0 watts
   ƒƒMaximum:
       DC input: 2.8 watts
       AC input: 4.5 watts

ƒƒ

Heat Dissipation

   ƒƒPower On (Standby)
       AC input: 3.41 BTU/h
   ƒƒMaximum
       DC input: 9.548 BTU/h

MTBF

   2,053,751 hours

Operating Temperature

   ƒƒ0 to 50 ˚C (32 to 130 ˚F)

Storage Temperature

   ƒƒ-10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

   ƒƒ10% to 90% RH non-condensing

Storage Humidity

   ƒƒ5% to 90% RH non-condensing

Device Dimensions (W x D x H)

   ƒƒ162 x 102 x 28 mm (6.3 x 4 x 1.1 inches)

Certifications

   ƒƒFCC Class B
   ƒƒICES-003 Class B
   ƒƒCE Class B
   ƒƒC-Tick Class B
   ƒƒVCCI Class B
   ƒƒcUL
   ƒƒCB
